Helical gear design in CATIA HOWTO (HOW-TO)


It is quite simple once you are able to create spur gear. But -
you have to create geometry in normal plane. Therefor tooth
are thicker in normal plane. If you know basic helical
gears geometry it won't be problem to create helical gear.

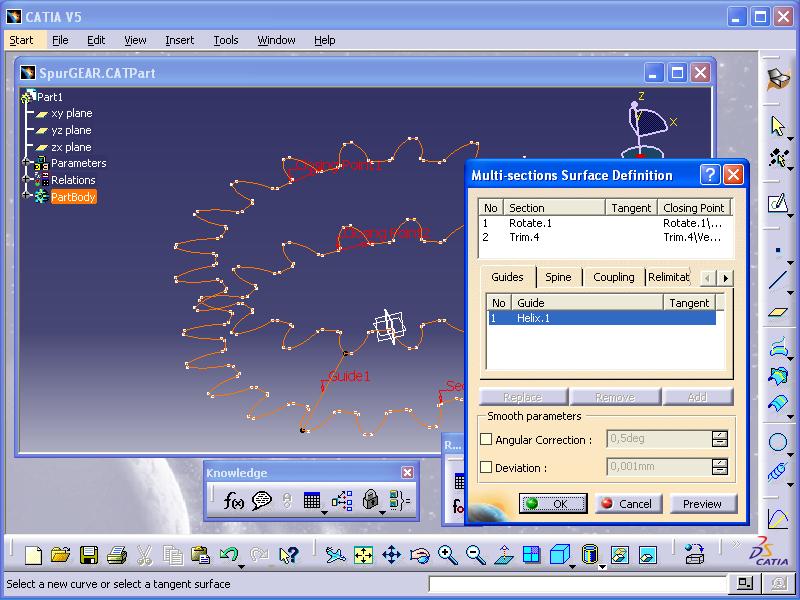

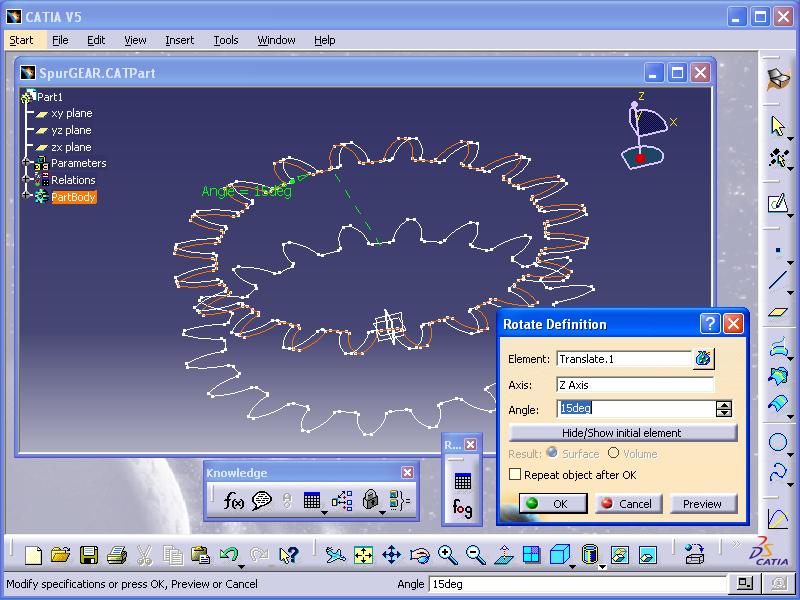

Pictures are self explainatory.
